Easy Laser XT660 Shaft Alignment System

Description

Easy Laser XT660 Shaft Alignment System is a shaft alignment system using two dots of laser. The display device of the Easy-Laser XT660 is an Android or iOS tablet or phone.The dot laser technique is employed by the XT660 measurement instruments. Compared to line laser systems, this allows for the measurement of larger machines and greater spans. In the event that the connection has backlash, it also offers increased precision. Furthermore, the dot laser makes it possible to verify additional factors during machine installation, such as bearing clearance and foundation twist.

You can choose between multiple measurement methods with the XT660, such as multipoint and continuous sweep. This provides you with the adaptability required to obtain the ideal measurement outcome.

The XT products are dust- and water-resistant, with ratings of IP66 and IP67. This, along with extended operating hours, ensures that you may start and complete even the most difficult tasks.
Easy to use

You have two options: install the free XT Alignment app on your iOS or Android device*, or use the sturdy Easy-Laser XT660 – Shaft alignment XT11 display unit. You are guided through the measurement procedure by the user-friendly UI.

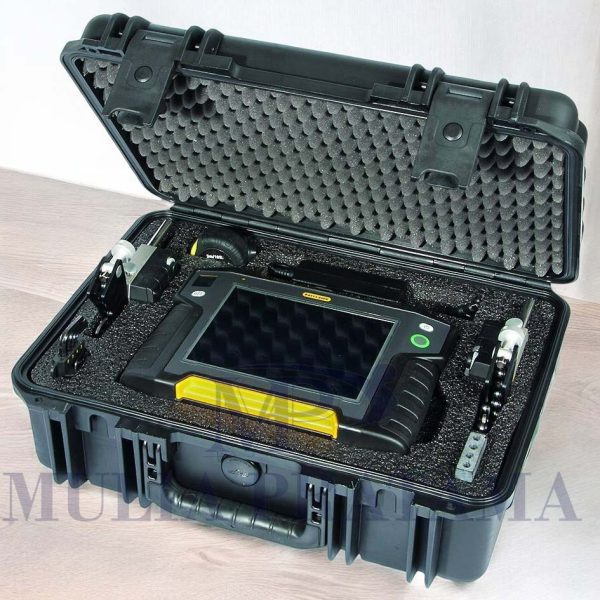

Easy Laser XT660 Shaft Alignment System include:​

1 Measuring unit XT60-M
1 Measuring unit XT60-S
2 Shaft brackets with chains and rods
4 Rods 60 mm [2.36″]
2 Extension chain 900 mm [35.4″]
1 Measuring tape 3 m [9.8′]
1 Hexagon wrench set
1 Charger (100–240 V AC)
1 DC split cable for charging
1 DC to USB adapter, for charging
1 Quick reference manual
1 Cleaning cloth for optics
1 USB memory with manuals
1 Documentation folder

Features :

• Robust, rubber-coated design, IP66/67.
• Large 8″ glove-enabled touch-screen.
• Screen-lock button.
• OLED display shows the battery status.
• IR Camera for thermal images (optional).
• 16 hours of operating time.
