Conquest 100 Concrete Scanner Sensors & Software

Description

Conquest 100 Concrete Scanner Sensors & Software is a light, portable device that provides a fast, non-invasive method to gain accurate insights of objects below the surface, even on a curved surface or column. CONQUEST  reduces risk by detecting rebar, post-tension cables, metallic and non-metallic conduits as well as current-carrying wires embedded in concrete.

features

• Line Scan:
  • Line Scans provide a real-time assessment of targets embedded in concrete.
  • Classify targets in real time with color-coded field interpretations by simply touching the screen.
  • Display position and depth of targets with the touch of a finger.
  • Pinpoint targets with the backup arrow.
• Grid Scan Mode:
  • Grid Scan detailed mapping generates on-site 3D images to better visualize embedded objects. Multiple grid sizes available.
  • Detect current-carrying power lines with PCD and visualize in Line Scans and Grid Scans.
  • Use the Drill Locator, with variable drill bit diameters, to decide exactly where to drill, avoiding all embedded objects.

Conquest 100 Concrete Scanner Sensors & Software  reduces risk

• Locate rebar, post-tension cables, metallic and non-metallic conduits embedded in concrete.
• Create detailed maps of concrete floors, decks, columns, walls and ceilings to detect embedded objects before cutting or coring.
• Detect voids beneath slab-on-grade/concrete.
• Locate and map current-carrying wires using Power Cable Detector (PCD) technology.

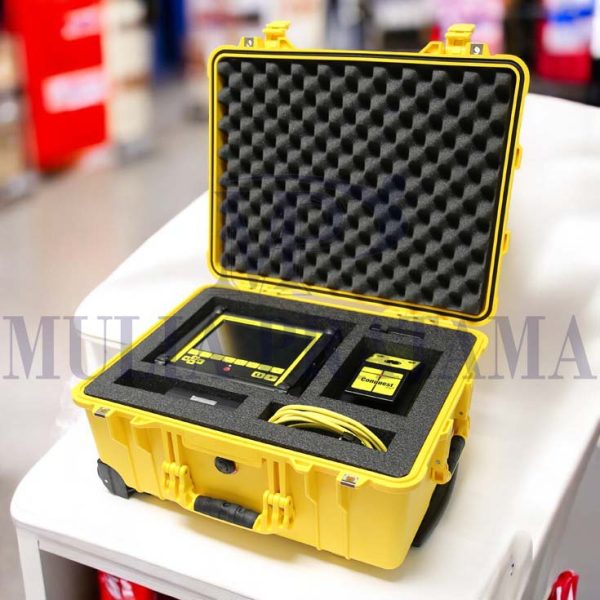

Package includes:

Sensors and Software Conquest 100 Ground Penetrating Radar (GPR) Concrete Scanner
Display unit
Sensor head
Sensor cable
Battery
Battery charger / AC Adapter
AC Adapter cord
Harness
Instruction manual

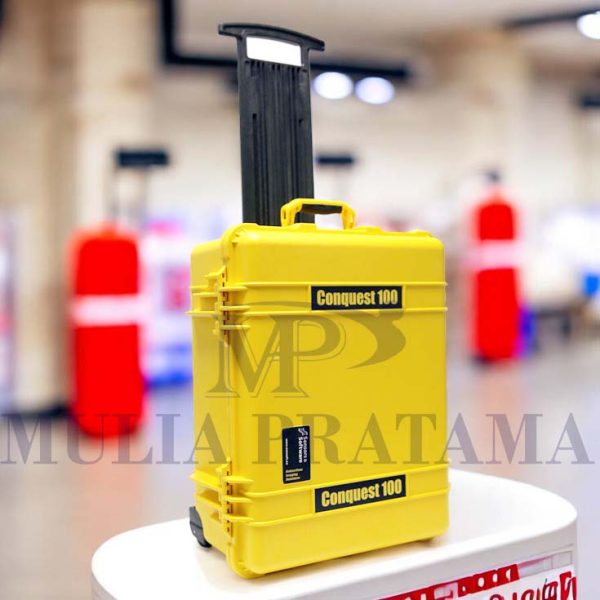

Carrying case

Specifications
