Zetec TOPAZ64 Portable Phased Array UT Instrument Best Price
Original price was: $8,200.$5,900Current price is: $5,900.
INCLUDES :
1. Topaz 64/128 TFM Instrument
1. Rechargeable Lithium Batteries (installed in Topaz)
1. Charger with Power Cord
1. Operating Manual (pdf copy)
1. ISO/17025 Certificate of Calibration
1. 4 Month Warranty Labor
1. Instrument Transport Case
Description

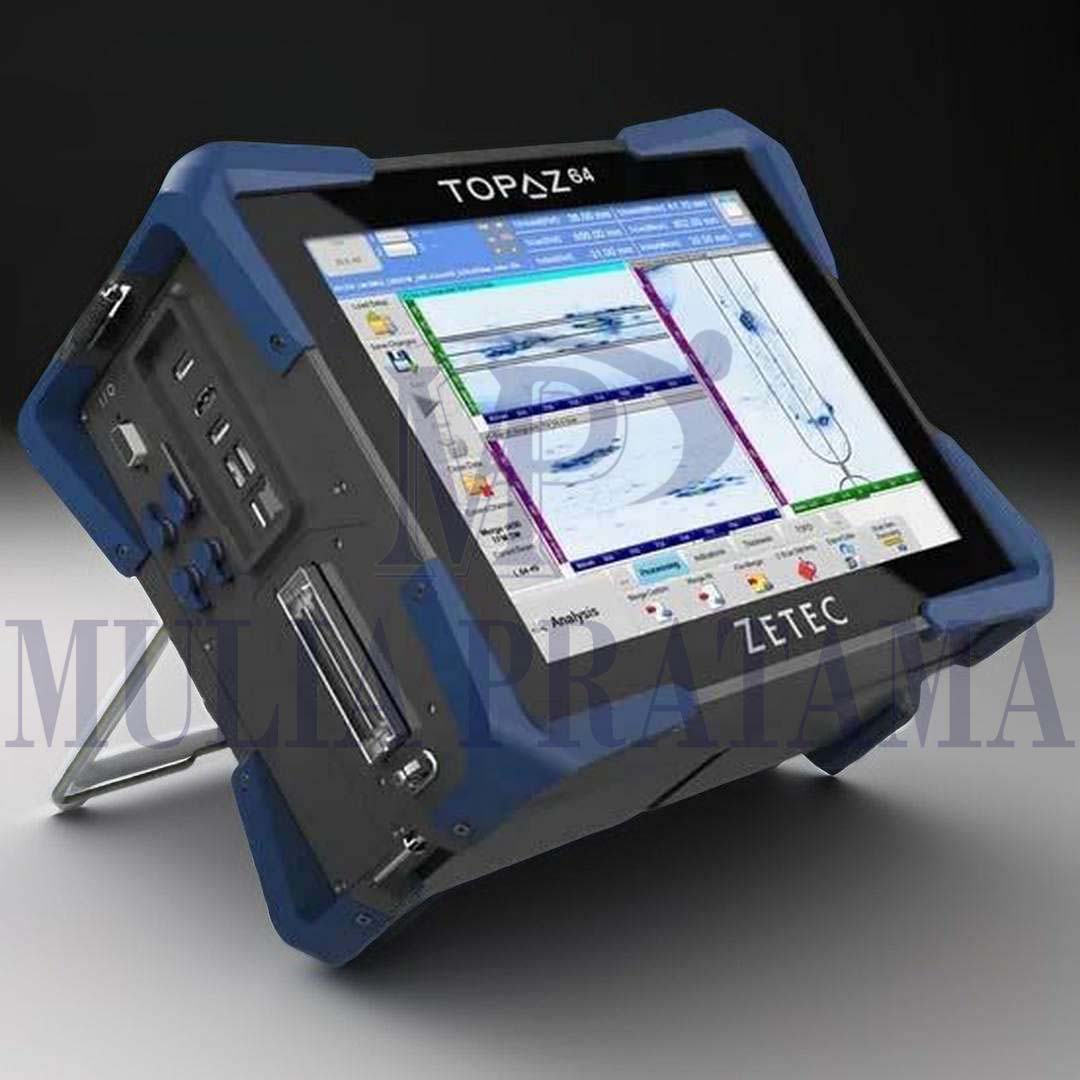

Zetec TOPAZ64 Portable Phased Array UT Instrument Best Price is a 64 channel Phased Array Ultrasonic Testing device that is fully integrated, portable, and allows you to do inspections more quickly and accurately. The manufacturing, transportation, oil and gas, and power generation sectors are the best places to use the Topaz 64. With 64 active channels, this instrument can quickly and precisely inspect complicated components, welds, and corrosion maps. In addition, the Topaz 64 works well for manual or encoded inspections.
FEATURING THE LATEST UT TECHNOLOGIES
TOPAZ64 is packed with smart features to handle all UT inspections in one portable package. It features the latest technologies in ultrasound including:
Code Compliant 64/128PR Phased Array UT
High Resolution Full Matrix Capture (FMC)
Total Focusing Method (TFM) up to 1M Data Points per Frame
Time of Flight Diffraction (TOFD)
As a result, TOPAZ64 offers advanced inspection capabilities that can improve productivity in the inspection process.
DRIVEN BY INDUSTRIALLY PROVEN ULTRAVISION SOFTWARE
TOPAZ64 includes UltraVision Touch software onboard. This powerful, yet easy to use software controls the acquisition of Phased Array UT signals, displays real-time images and provides online and offline data analysis. UltraVision offers advanced features for TOPAZ64 designed to improve Phased Array UT inspections, including real-time high resolution TFM, and post-processed TFM from recorded elementary A-Scans. TOPAZ64 and UltraVision Software support 2D matrix arrays in pulse echo, pitch & catch or multiprobe configurations without the need for any external software.
Benefits
Phased array up to 64/128PR with 2 UT channels at 200V
FMC or PWI excitation with up to 64 elements
Real-time high-resolution TFM
64-channel code compliant PAUT
Time-of-Flight-Diffraction (TOFD)
Raw FMC data saved in encoded mode
307 mm(12.1 in) high-resolution multi-touch display
Maximum PRF of < 40 kHz
Zetec TOPAZ64 Portable Phased Array UT Instrument Best Price SPECIFICATIONS
| Size (H × W × D) | 343 × 278 × 158 mm (13.5 × 10.9 × 6.2 in) |
| Weight (including one battery) | 9.1kg (20.0 lb) |
| Multi-Touch Display | 12.1 in. wide, 1024 x 728 pixels |
| Air Intake | No |
| Battery Operation | Yes |
| Phased Array Connector | ZPAC |
| Phased Array Channels | 64/64P or 64/128PR |
| UT Channels | 2 P/E or 2 P/C |
| Amplitude Resolution | 16-bits |
| Measurement Gates | 4 1 synchronization gate (peak, crossing, autocrossing) |
| Data Interfaces | Ethernet 1000 Base-T; 1 x USB 3.0; 3 x USB 2.0 |
| Maximum PRF | < 40 kHz |
| Data Compression | 1, 2, 4, 8, 16 |
| Max. Applied Voltage (50 ohms) | 150Vpp PA UT (Bipolar) /75V (Unipolar) / 200V UT |
| Bandwidth (-3 dB) | 0.5 to 18 MHz PA; 0.5 to 25 MHz UT |
| Rectification | Digital |
| Filtering | Analog / Digital (FIR) |
| Smoothing | Digital |
| Self-Check | Yes |
| Automated Probe Detection | Yes (with Zetec probe ID chip) |
| Automated Scanner Detection | Yes (with Zetec probe ID chip) |
| # Focal Laws | 1024 with unlimited groups |
| TFM Frame Size | Up to 1M points |
| TFM Frame Rate | Up to 110 Hz (65k points frame resolution) |
| Maximum Number of Samples | 16,384 |
| Maximum Data File Size | 2 GB; Unlimited for raw A-Scan data |
| Encoder Interfaces | 3 quadrature-type |
| Onboard Software | UltraVision Touch embedded |
| Serves as Protection Key | License for UltraVision Touch |
| Data Acquisition & Analysis (for remote data acquisition or off line postprocessing | UltraVision Touch; UltraVision 3 |
| Embedded Hard Drive | 256 GB SSD |
| Video Output | HDMI |
| Instrument Calibration | Compliant with ISO 18563-1 / EN 12668-1 |
| Voltage | 100 to 240 VAC |
| Frequency | 50 or 60 Hz |
| Maximum Power | 100 VA |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 80% non-condensing |
