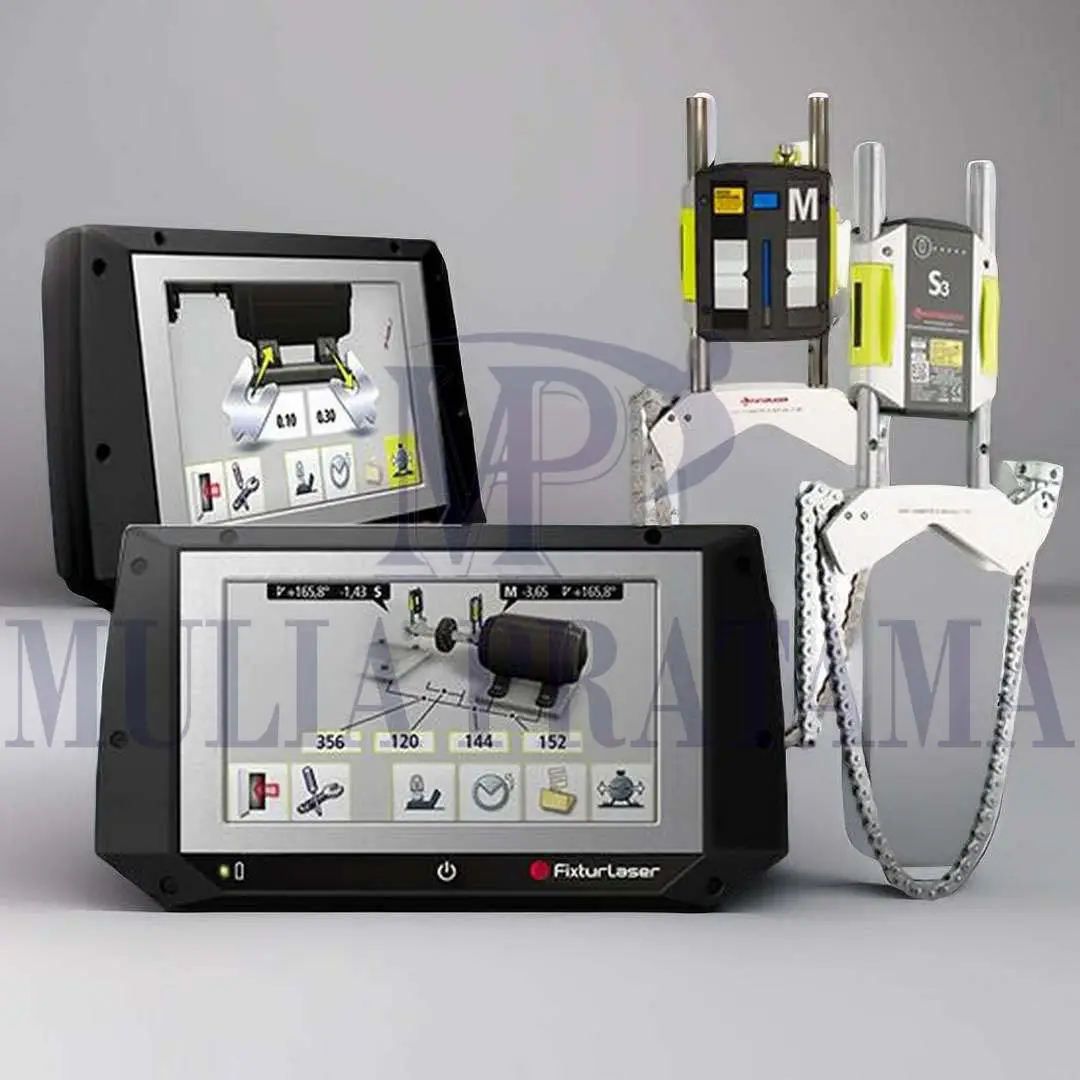

Fixturlaser EXO Laser Shaft Alignment System

Description

Fixturlaser EXO Laser Shaft Alignment System The machine’s precise position will be displayed in real time through the True Live feature’s measurement values. Have you blocked the laser beam’s path? or shift the machine’s location outside the detector’s detection range? No worries, our intelligent sensors will pick up where the machine left off and provide you with real-time information at all times.

Fixturlaser EXO Laser Shaft Alignment System measures the need for horizontal alignment, but its real power is in helping correct misalignment. The dual sensors allow the EVO to continually read the true position of the shafts, even as uncontrolled movements are experienced during the alignment process. The benefit of this “true position sensing” is that it allows the user to complete the alignment using a Verti-Zontal™ move adjusting in both the vertical and horizontal planes without re-measuring between moves. Alignments can usually be completed in just one or two tries.

The same power and ease of use is offered in an application for the alignment of vertically mounted machinery.

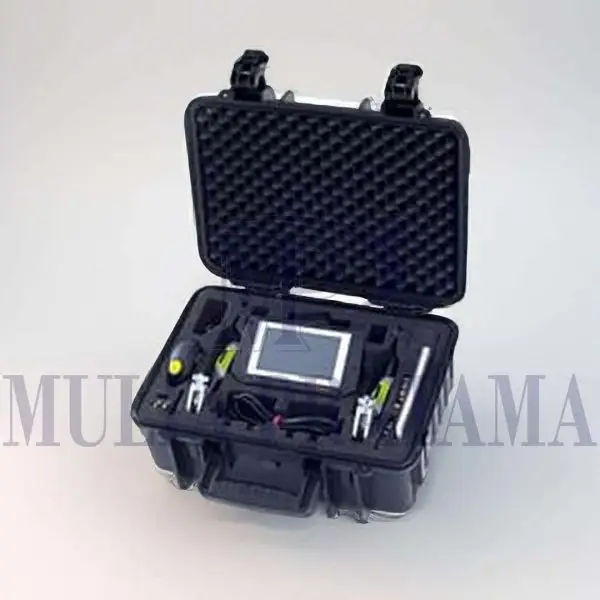

Fixturlaser EXO Laser Shaft Alignment System – Package with Case

• Tablet EX
• 2 pcs of digital smart sensors EX
• 2 pcs of V-brackets, complete with chains EX
• Rod kit
• 2 pcs of chains, 8 mm (length=970 mm)
• Power cable, EU and US
• USB cable with snap ferrite, A-mini, 2 m
• Power supply 5 USB ports
• 3 pcs of USB cables A-mini B, 0,5 m
• Tape measure 5 m
• 2 pcs of angled universal tools
• Fixturlaser NXA manual – English version

Technical specification

Fixturlaser EXO – Package with Case*
Weight including all standard parts	6,6 kg (14,6 lbs)
Storage temp	-20 to 70°C (-4 to 158°F)
Long term storage temp	Room temp. 18 to 28°C (64 to 82°F)

Case
Material	Anodixed aluminum/plywood
Weight (empty)	4,0 kg (8,8 lbs)
Dimension	370 mm x 270 mm x 205 mm (14,6 in x 10,6 in x 8,1 in)

Digital Laser Sensors
Housing Material	Anodized Aluminum frame and high impact ABS plastic overmolded with TPE rubber
Operating Temp	0 to 50°C   (32 to 122°F)
Storage Temp	-20 to 70°C ( -4 to 158°F)
Long term storage temp	Room temp. 18 to 28°C (64 to 82°F)
Battery Charging Temp	5 to 40°C   (41 to 104°F)
Relative humidity	10 – 90%
Weight	M4 Ex: 220 g (7,8 oz) S4 Ex: 190 g (6,7 oz)
Dimensions	92 mm x 77 mm x 33 mm (3,6 in x 3,0 in x 1,3 in)
Environmental protection	IP 65 (Dust-tight and protected against water jets)
Laser	650 nm class II diode laser
Laser line fan angle	6°
Laser line width (1/e2)	1.6 mm
Laser line divergence (full angle)	0.25 mrad
Laser power	< 1 mW
Measurement distance	Up to 5m
Detector	2nd gen. digital sensor
Detector length	30mm ( 1,2 in )
Detector angular subtense	30mrad/m (3mm/100mm per meter)
Detector resolution	1 µm
Measurement accuracy	0,3% ± 7 µm
Signal processing:	Digital signal processing with sidespot rejection, edge detection, ambient light elimination, and anti-vibration mode
Ambient light protection	Optical filtering and digital ambient light signal elimination
Inclinometer:	Dual High-Performance MEMS inclinometers
Inclinometer resolution	0,01°
Inclinometer accuracy	±0,2°
Total measurement axis’s (M4 S4Ex units)	14
Wireless communication:	Class I Bluetooth transmitter
Communication range	10 m (33 ft)
Peripherals – User accessible	1 USB Mini port (IP 67);  Charging: 5V, 0,5A
Power supply	High-performance Li-Ion battery or external power.
Operating time:	12 hours continuous use (measuring)
Battery Charging time (system off, room temperature)	5 hours
LED indicators	Unit state, laser transmission and 5 battery status indicators with instant battery check
Laser safety*

Shaft brackets
Fixture	V-fixture with non-twisting chain, width 20 mm (0,79 in)
Material	Anodized aluminum
Shaft diameter	Ø 25-175 mm (1”-6.9”) Ø 25-450 mm (1”-18”) (with extension chains)
Rods	4 pcs 100 mm (3,9 in) and 4 pcs 150 mm (5,9 in) Extendable to 250 mm (9,8 in)
